PU/PIR Discontinuous for Freezing & Refrigeration Panel
> Detailed Line Up
> Sheet Forming Line

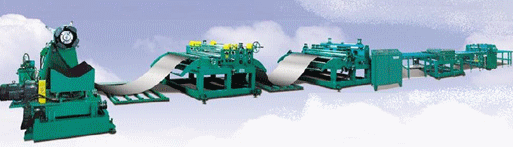

Heavyweight Steel Sheet Roll Forming Line for 0.5 ~ 1.0mm in Steel Sheet Thickness

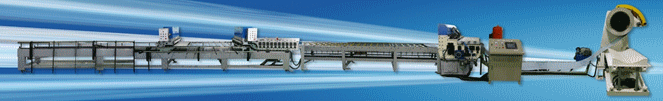

Lightweight Steel Sheet Roll Forming Line for 0.3 ~ 0.5mm in Steel Sheet Thickness




Heavyweight Forming Lightweight Forming Specification
Coil Car & Uncoiler
Coil Car & Uncoiler

Uncoiler with Coil Car

  • Loading Capacity : 3, 5, 7.5, 10, 12 ton
  • Type : Hydraulic Mandrel Expanding
  • Drum Expanding & Sliding Structure
  • The Strongest Mechanical Design by Integral Structure
Leveler & Side Trimmer
Non- Basic
  • Leveller : 4-High Type for Straightening the Steel Sheet Surface or Other Types
    - In Case of Higher Quality of Steel Sheet, It is not Necessary
  • Side Trimmer : Tooth-Cutting Type - Steel Materials : SKD 11
NC Feeder
Roll Feeder
  • NC Feeder : Accurate Feeding the Steel Sheet by Micro Detecting
  • Roll Feeder : Knife Cutting by Hydraulic Power
Notching & Shearing
Notching & Shearing
  • Notching Unit
    - Cutting the Corners of Left & Right Side for Folding by Hydraulic Press-cutting
  • Chopper
  • - Cutting the Coil into the Necessary Steel Sheet Length by Air Cylinder Knife.
Edge Roll Former

  • Edge Roll Former
    - Roller Station : 10 ~ 12 Stations
    - Gear & Chain Drive by Dual-Plate Stand for Width Adjustment
Twin L-Bender

  • Twin L-Bender or Mono L-Bender
    - Type : Hydraulic L Mould Folding
    - Length Manipulation by Encoder
