PU/PIR Discontinuous Sandwich Panel Produciton Line for Wall & Roof
> Detailed Line Up

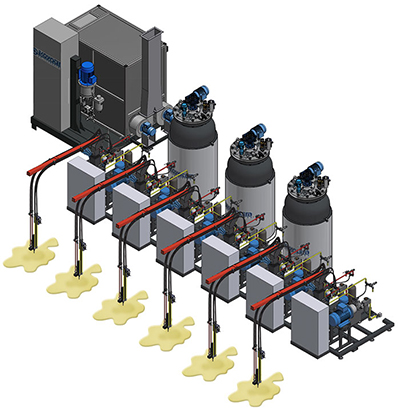

> PIR/PU High Pressure Dispensing Line




Standard Model (Output Adjustable by Inverter)

Model Output (g/sec) Tank Capacity
(A+B)
Pump Maker
TE-H300 Max. 700 500L Rexroth or Parker
TE-H500 Max. 1,100 500L Rexroth or Parker
TE-H700 Max. 1,600 500L Rexroth or Parker
TE-H1000 Max. 3,200 1,000L Rexroth or Parker
TE-H1200 Max. 4,000 1,000L Rexroth or Parker

Main Features

- We have Wide Range of High Pressure PU/PIR Dispensing System for Your Wider Price and Performance.
- We have Covered Most of the Korean PU/PIR Foam Products Requirements for More Than 20 Years
- We will Give you 3-Year Free Maintenance Service from our Stable and Higher Machine Components Performances


Technical Data

  • High Pressure Mixing Head Line-up

TE-HM1014

TS-HM1625

TH-HM1320

- L Style High Pressure Mixing Head or I Style Type for Mass Output
- Output Customizing Available by Modifying Inner Structure
- 2 sets of Nozzle - 1 set of Push Button Box
- Sensor : 2 Different Styles Available


  • Metering Group Line-up

Rexroth Metering Group
with Magnet Coupling

Rexroth Metering Group
with Steel Housing Coupling

Parker Metering Group
with Cast Iron Coupling

Parker Metering Group
with Steel Plate Coupling

- Axial Piston Pump & AC Drive with Inverter for Automatic Output Adjustment
- Pressure Relief Valve / - Pressure Transducer / - By Pass Stream Distributor
- Collecting Basin / - Piping & Fitting / - Magnet Coupling(German Made) Connection is Optional


  • Hydraulic Unit Line-up

Digital Meter

Analogue Meter



Oil Tank : 100 Liter (Standard)
Hydraulic Pump - Hydraulic Motor - Oil Level Indicator /
Temperature Thermometer / - Accumulator : 10 Liter /
Filter on Return Line / - Heat Exchanger / - Pressure Gauges


  • Available Models from TradeBelt Consortium

TE-1000 Series

TE-2000 Series

TS Series

TH Series
