PU/PIR Continuous Sandwich Panel Production Line for Roof & Wall
> Detailed Line Up
> Roll Forming Line



  • Loading Capacity : 5, 7.5, 10, 12 ton
  • Type : Hydraulic Mandrel Sliding & Expanding
  • Drum Expending & Shrinking
  • The Strongest Mechanical Design by Integral Structure
  • Detailed Specification is in Main Proposal


  • Leveller : Buyer Option, 4-High Type for Straightening the Steel Sheet Surface
  • Shearing M/C : Knife Cutting Type
  • Pinch Roller : for Guiding Coil into the Proper Position in Roll Forming Machine
  • Protective Film Coating Device : For Attaching the Protective Film onto Steel Skin


  • Purpose : Different Panel Surface Shape while Avoiding Panel Surface Wave Problem
  • Pattern Types : Wide Groove, Strip, Several Kinds of Micro wave and the like
  • Steel Materials : S45C with Hard Chromium Coated Surface by Several Heat Treatment Process
  • Type : Motorized Roll Pressing Type

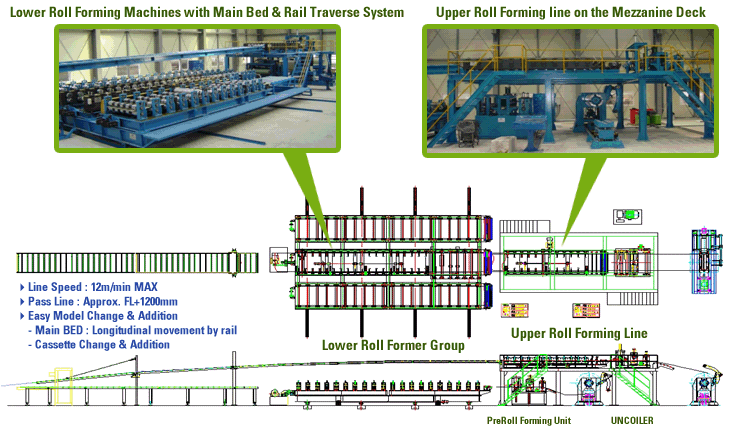

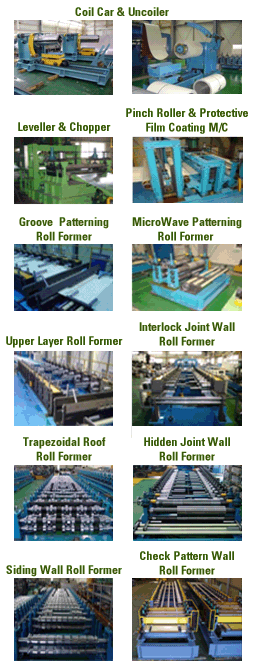

Roll Former Group

  • Around 14 ~ 36 Stations depending on Panel Shape in Side & Surface
    - Capped Joint or Interlock Joint Wall : about 14 Stations
    - Trapezoidal Roof Roll Forming Machine : 28 Stations
    - Concealed Joint Wall Roll Forming Machine : 28 Stations
    - Capped Joint Wall Roll Forming Machine : 14 Stations
    - Check Pattern Wall Roll Forming Machine : 28 Stations
    - Sinus Panel Roll Forming Machine : 32 Stations
    - Siding Panel Roll Forming Machine : 24 Stations
    - Small Sinus Panel Roll Forming Machine : 34 Stations
    - Small Sharp Rib Panel Roll Forming Machine : 36 Stations
    - Combined Siding Panel Roll Forming Machine : 24 Stations
  • Driven by : Gear & Chain
  • Roller Materials : S45C & SCM21
  • Roller Surface : Hard Chromium Coating with Several Heat Treatment Process
  • Roller Stand
    - Cast Iron Set / - Dual Steel Plate Housing / - Single Steel Plate
